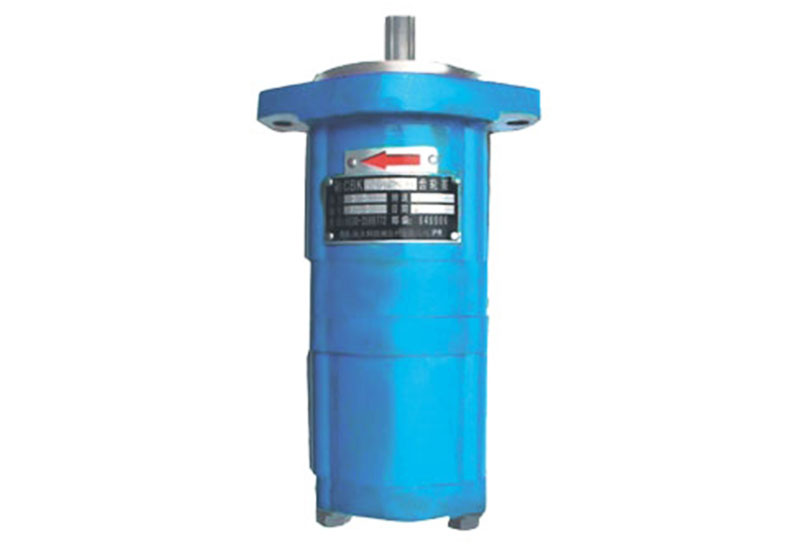

502007 CBKK1/CBKK1 HP Gear Pump

Purpose and characteristics

The GBKK1/CBKK1 Duplex HP Gear Pump is provided with high-strength nodular cast iron shell, high-strength special bearing and special compensation structure. It features high pressure, wide range of revolving speed, multiple specifications of displacement, small volume, reliable work, convenient maintenance, long service life and the like. It may be widely applied to the hydraulic systems of engineering machinery, hoisting and transport machinery and mining machinery.

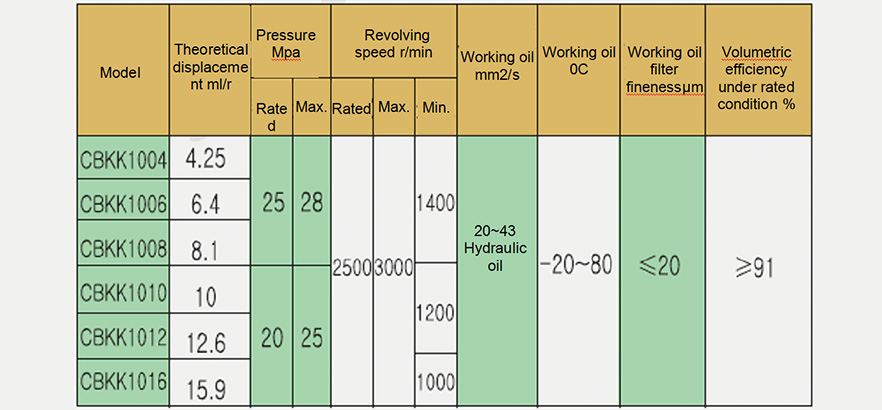

Performance parameters

Note: For special requirements of client, please contact the technical section of our company.

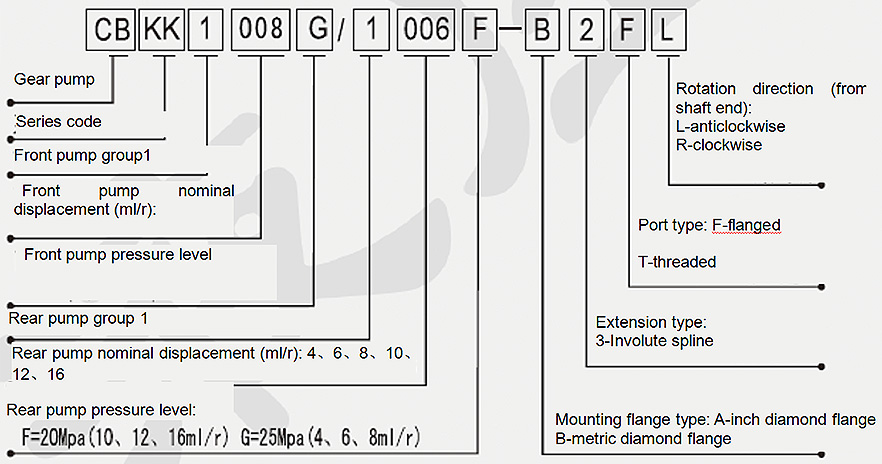

Model description

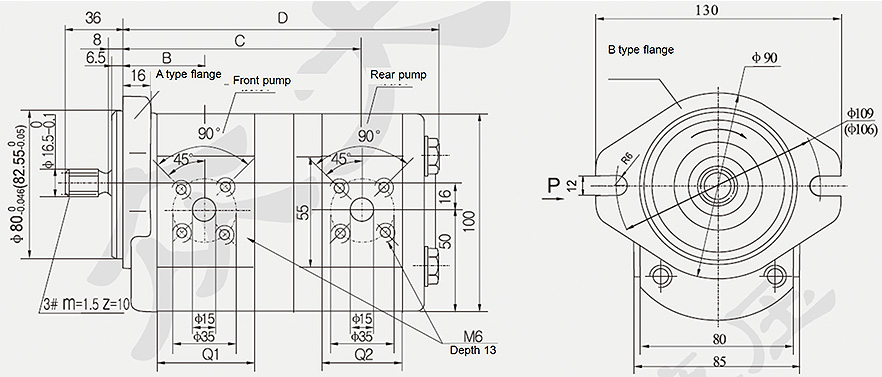

CBKK1/KK1 overall, installation and connection dimensions

Note: Dimensions in brackets belong to the A type flange.

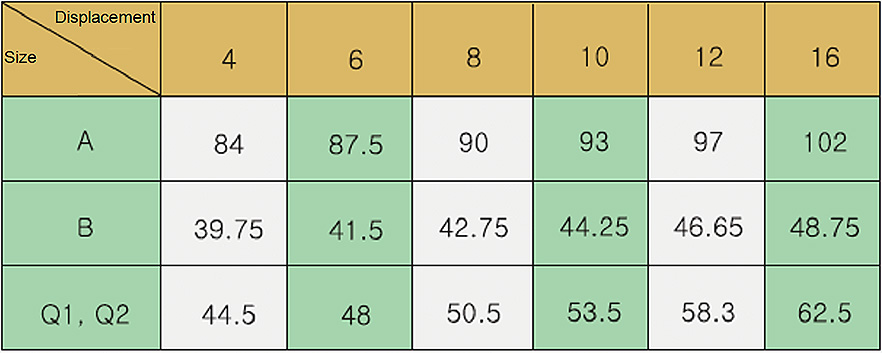

Note: C=54.5+Q1+Q2/2, D=76.5+Q1+Q2

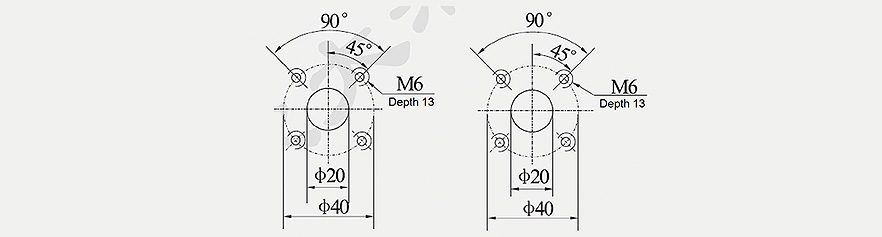

P direction (Inlet port flange)
