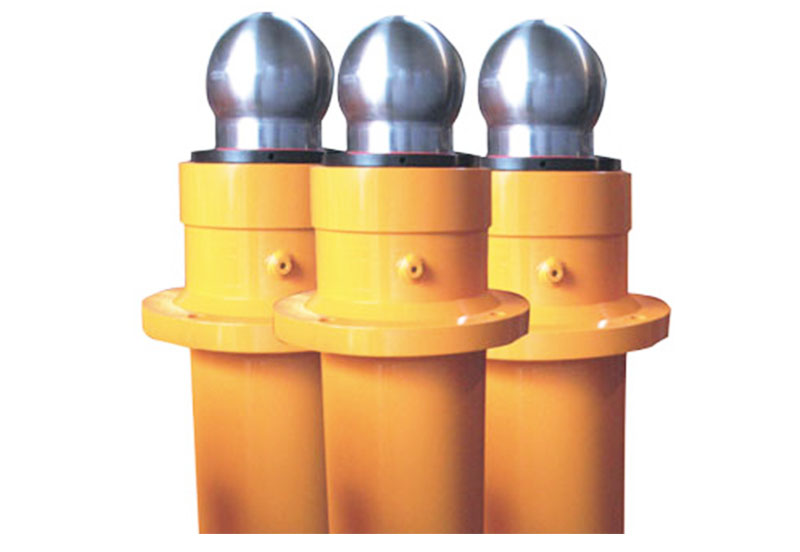

501001 HSG Base Type Hydraulic Cylinder Series

Purpose and characteristics

The HSG Base Type Double-Acting Single-Rod Piston Hydraulic Cylinder Series is the actuating mechanism doing the reciprocating rectilinear movement in the hydraulic system. It is featured with simple structure, reliable work, convenient dismantlement, easy repair, cushioning device and diversified connection modes. Therefore, it is widely applied to engineering machinery, mining machinery, lifting and transportation machinery, metallurgical machinery and other machinery.

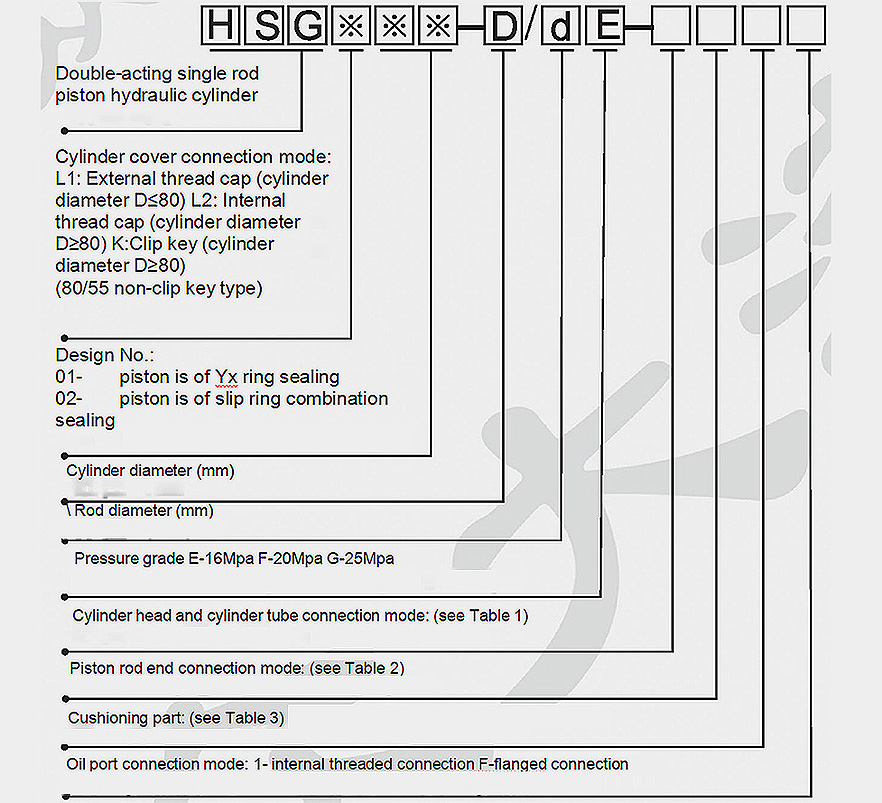

Model description

Connection mode with the main engine

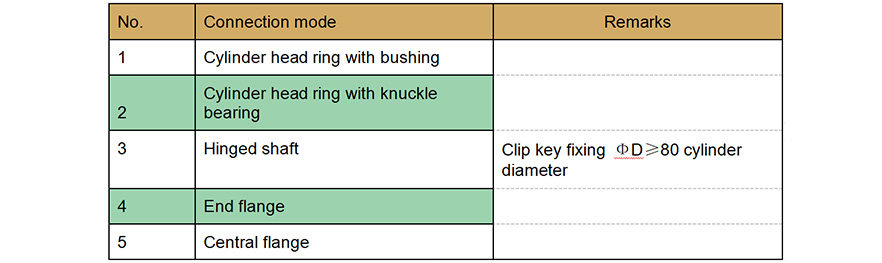

Cylinder head and cylinder tube connection mode

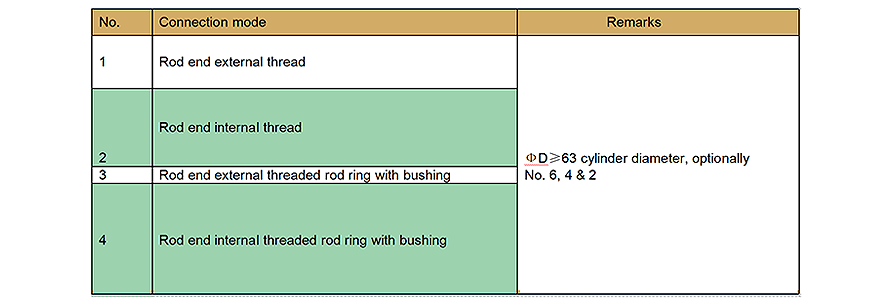

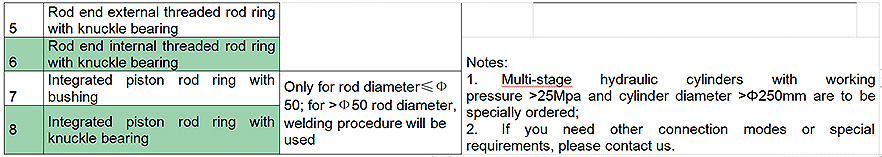

Piston rod end connection mode

Cushioning part

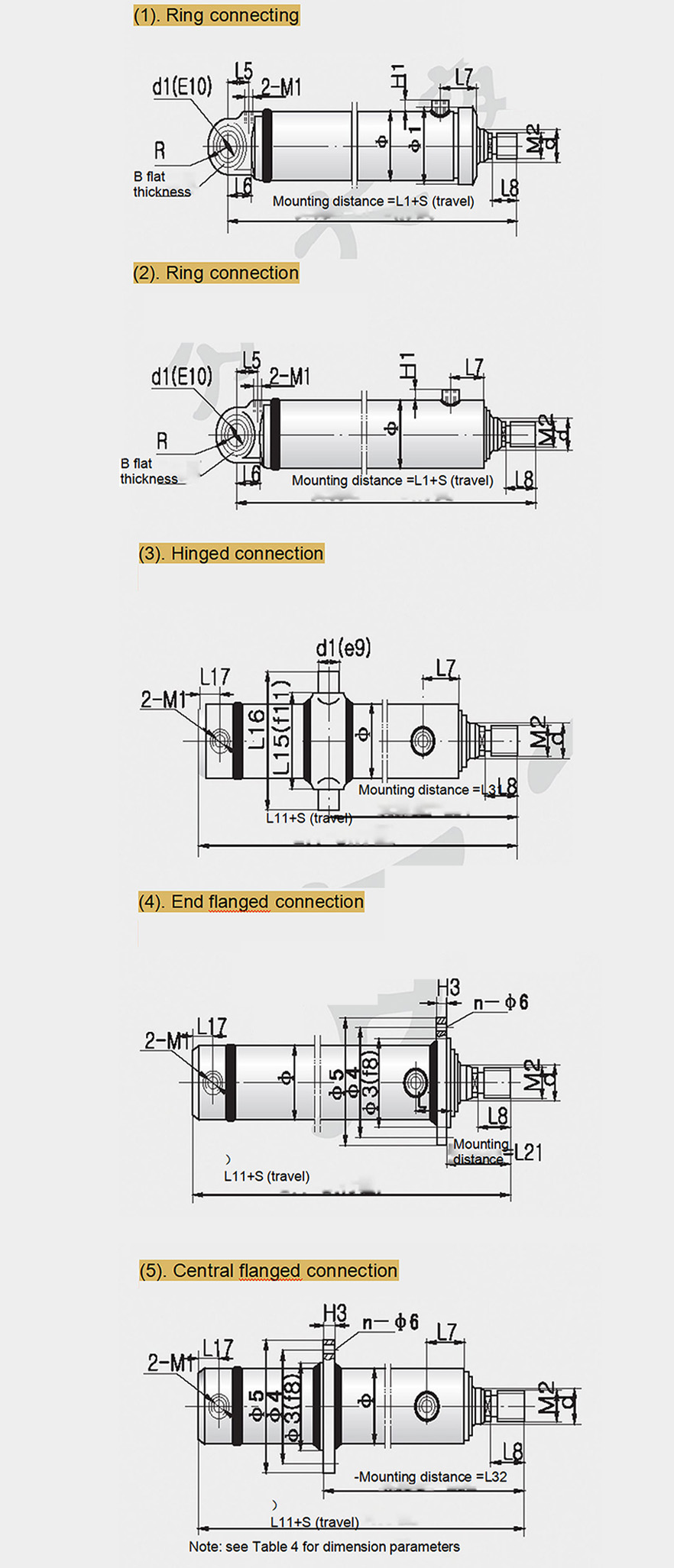

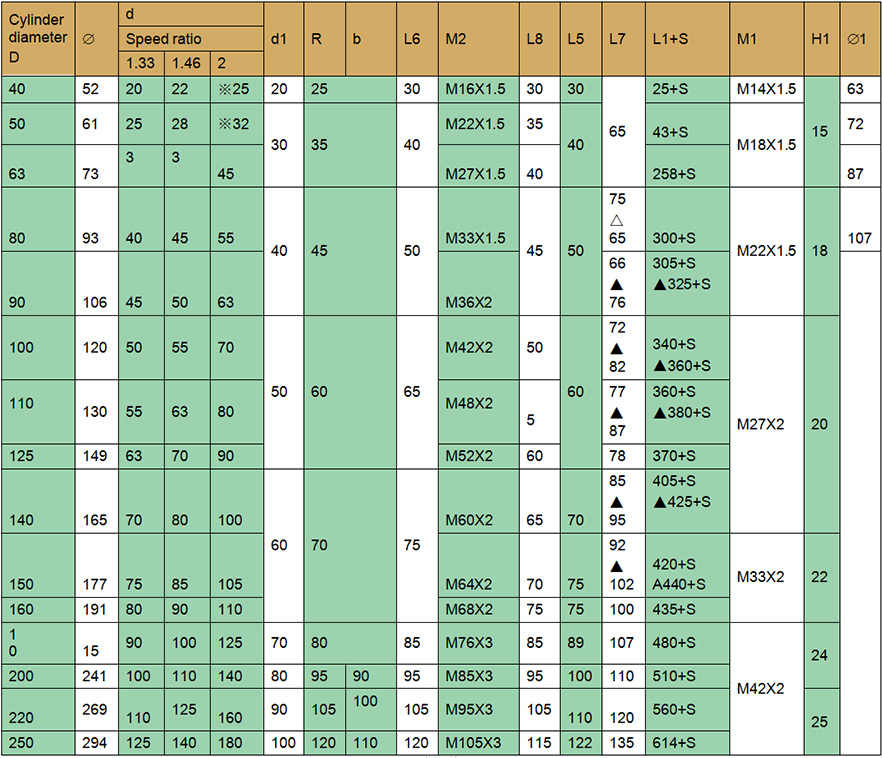

Overall, installation and connection dimensions

1. Piston rod end external threaded connection Fig. 1

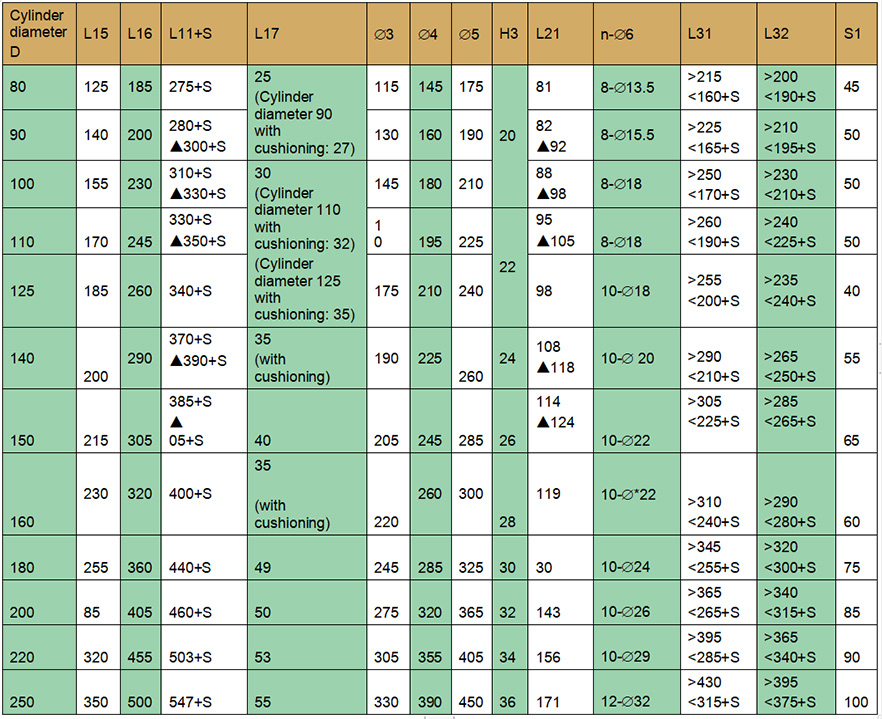

Installation and connection dimensions of piston rod end external threaded connection

Notes:

1. Those with ▲ are connection dimensions only when speed ratio = 2;

2. For those with ※, speed ratio is 1.7;

3. Those with △ are Æ80 cylinder clip key dimensions;

4. The travel of hinged connection shall not be smaller than the minimum travel S1 as listed.
