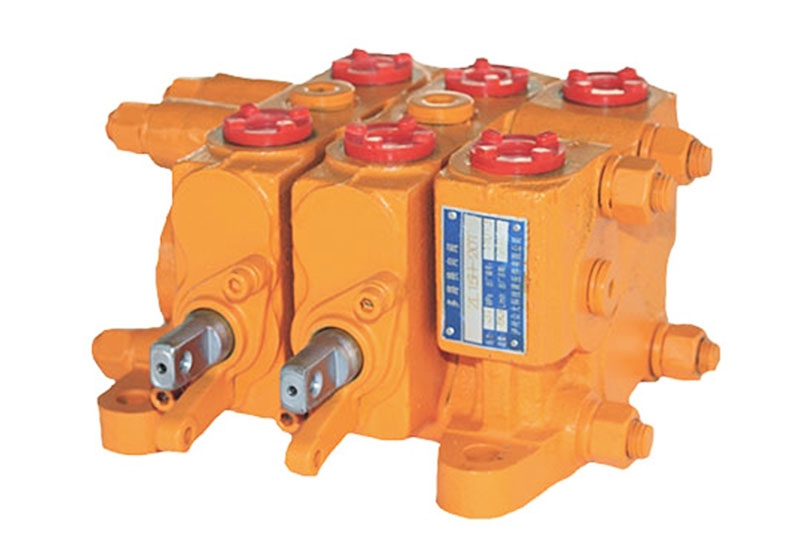

503005 ZL15 MDCV

Purpose and characteristics

The ZL15 MDCV, a combination of multiple reversing valves and safety valves and various additional valves, features high working pressure, compact structure, good safety performance, high reliability, rare leakage, high universality, etc. It is mainly applied to the hydraulic systems of engineering machinery such as loader before ZL40 and multifunction loader and small excavator, and is also applied to the hydraulic systems of hoisting and transport machinery, mining machinery, agricultural machinery or other machinery to realize centralized control on multiple executing mechanisms.

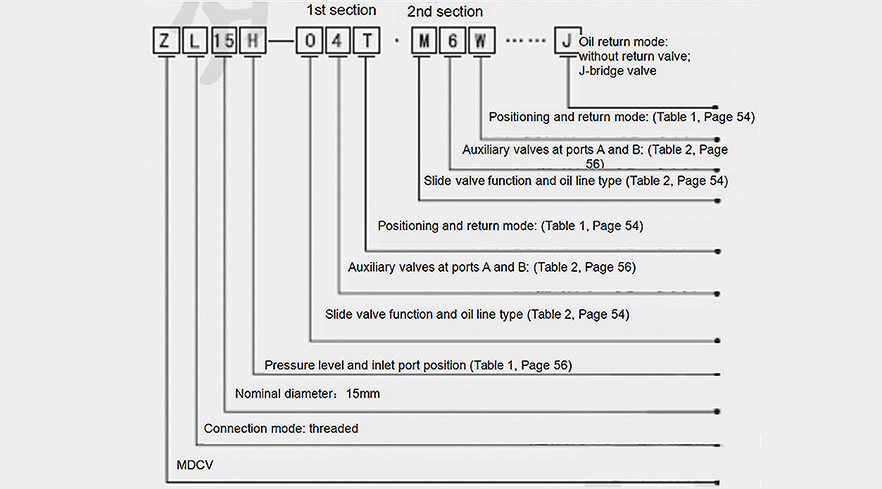

Model description

Note:For special requirements of ordering, please contact the technical section

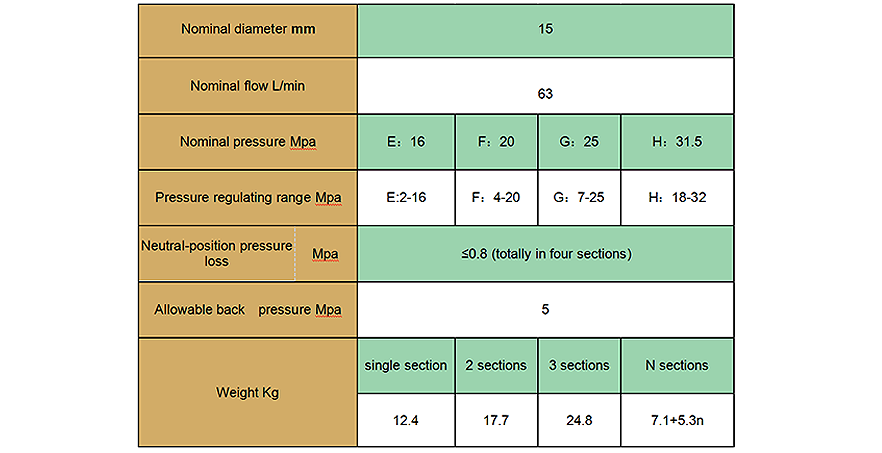

Technical parameters

Overall, installation and connection dimensions of ZL15E-OU.QU Pilot-Operated MDCV

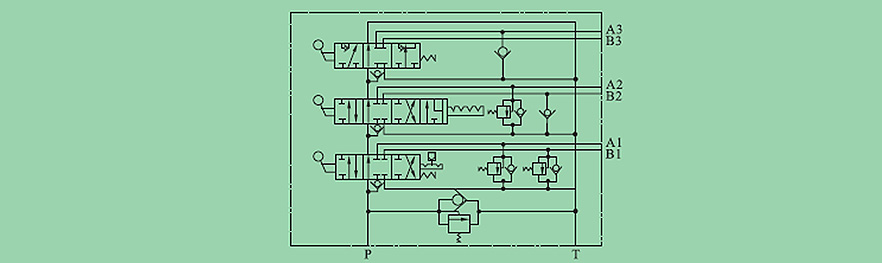

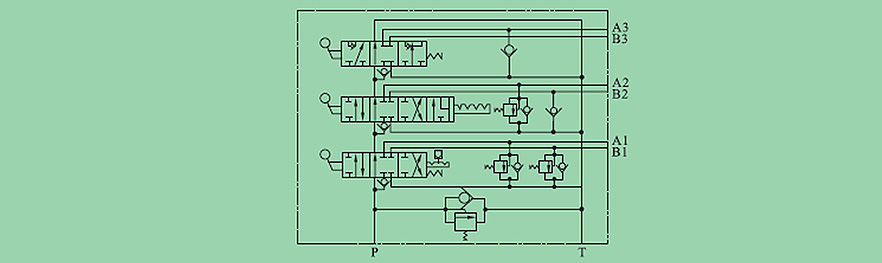

Model example

ZL15 -O4G▪Q5W▪M6T
