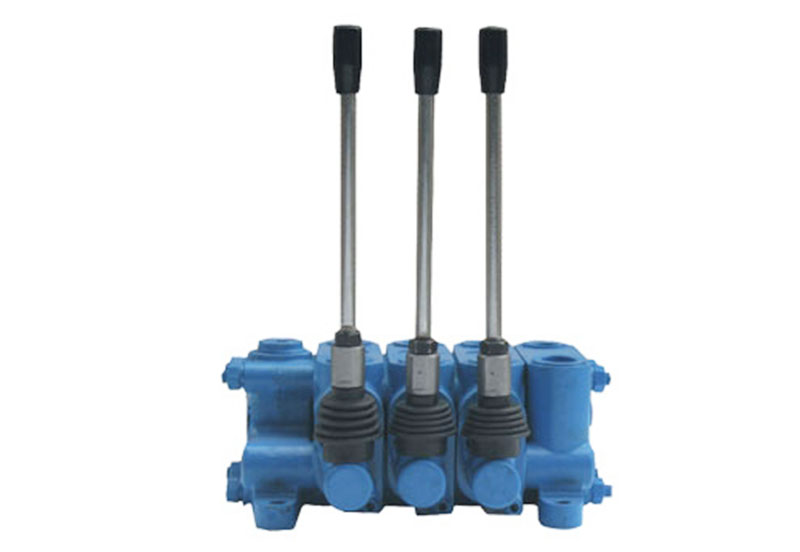

503039 JLS-L15※ Multiple Directional Control Valve

The JLS-L15 Multiple Directional Control Valve Series are high cost performance upgrade products based on the ZS, ZL & DL Series. A single or double-direction hydraulic lock may be inserted on the MDCV for locking the inlet and return oil circuits of the actuating element and prevent sliding of the actuating mechanism. There are featured with high pressure, easy control, safety and reliability. The reversing slide valve has A, 0, Y and Q functions, capable of combining freely within combines 1-10 to realize different control functions P. It is applied to combine-harvesters, sanitation machinery, medium and small-size drilling machine s and other types of engineering machinery for changing the flowing direction and realizing control of multiple actions of actuating mechanism.

Note: The slide valve function code + 1 represents Port A + hydraulic lock; the slide valve function code + 2 means Port B + hydraulic lock; the slide valve function code P + 3 represents Port A & B + hydraulic lock.

It is recommended to adopt JSD Manually and Electrically-Operated Multiple Directional Control Valve Series for electric or remote control over the corn, wheat and rice combine-harvesters and other agricultural machinery.

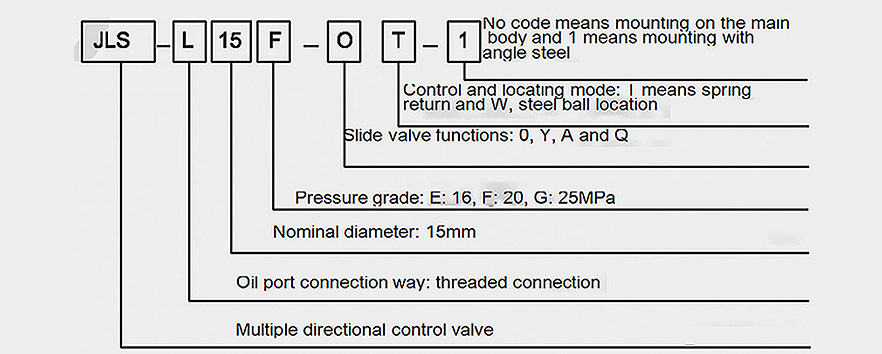

Model description

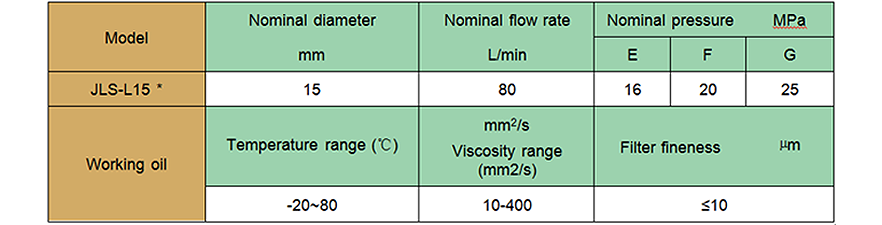

Performance parameters

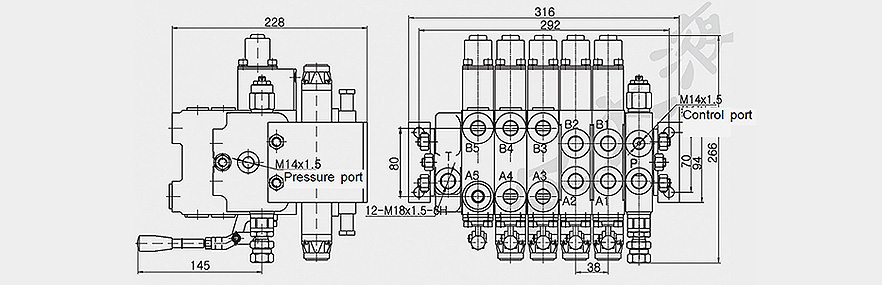

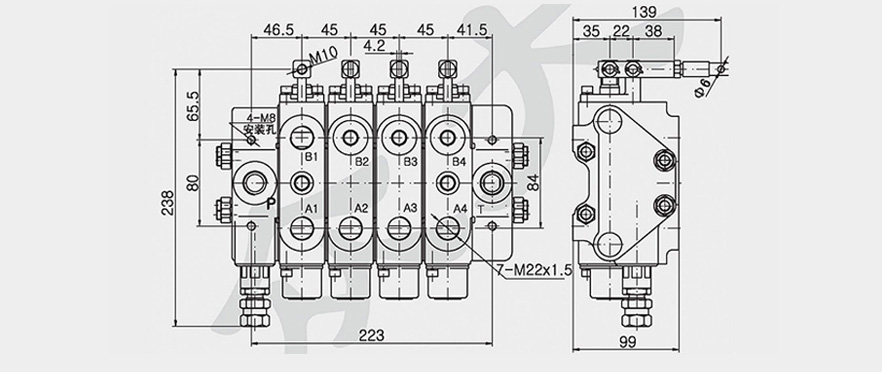

JLS-L15E-OT.A1T.A1T.AT Multiple Directional Control Valve Outline Drawing

JLS-L15E Multiple Directional Control Valve Dedicated on Wheat-Rice Combine-Harvester

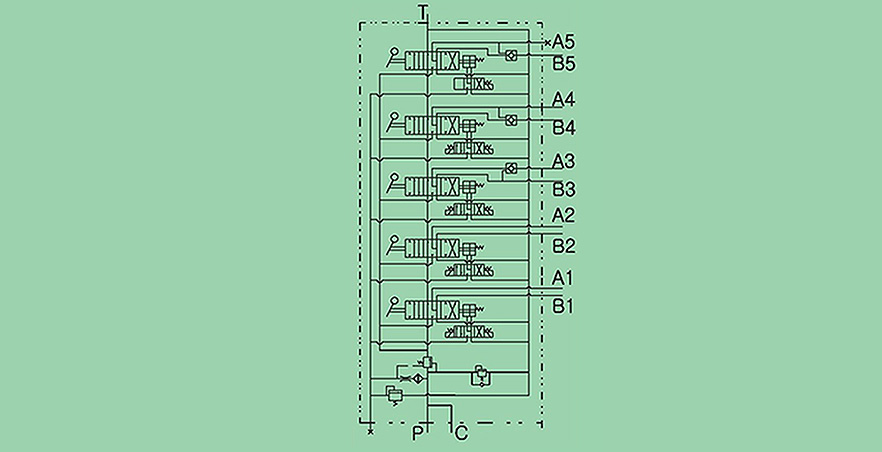

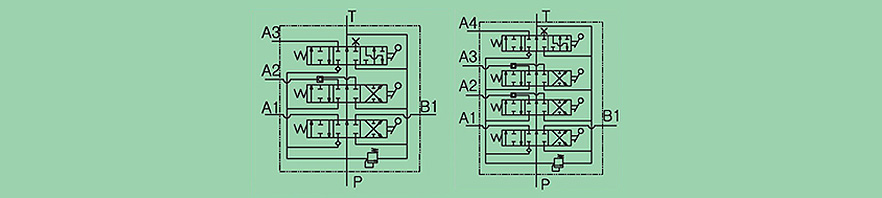

Hydraulic schematic

JSD-L12E-2(YT).Y10aT.Y10bT.Y10bT (1/2) Manually and Electrically-Operated Multiple Directional Control Valve

JSD-L12E Multiple Directional Control Valve Dedicated on Corn Harvester
