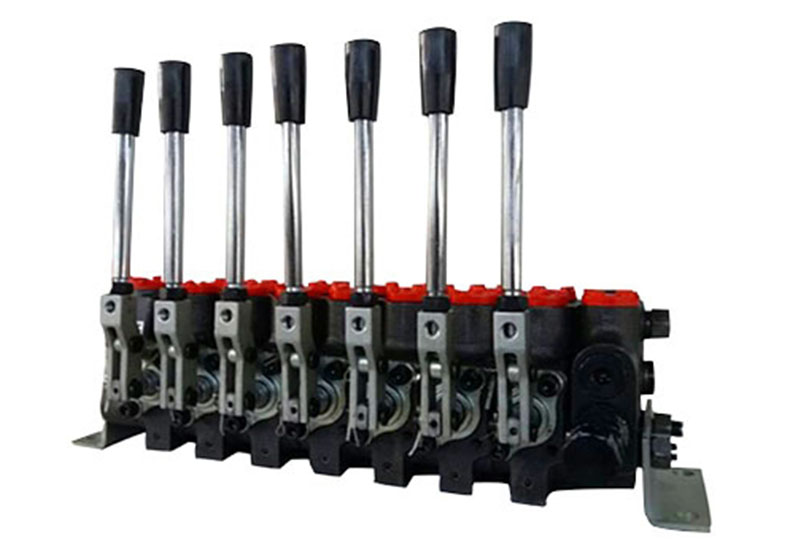

503045 JGF-L12 Multifunction MDCV

Purpose and characteristics

The JGF-L12 Universal Multifunction MDCV, a patented product newly developed by our company in 2016, has highly integrated functions of meeting multiple functional requirements and plugging in multiple auxiliary valves, and is widely applied to various kinds of hydraulic machinery.

Performance characteristics

1. To select double-layer jack reversing valve, overload valve (with oil supplement function) and pressure relay may be plugged in the first layer of port ends A and B; auxiliary valves such as pilot-operated hydraulic lock, one-way throttle valve, unidirectional balance valve and pressure relay are plugged in the second layer.

2. To select functional combination of valve groups, common valve group and double-layer valve group should be classified and combined as far as possible so as to realize convenient connection of ports of single-layer valve group.

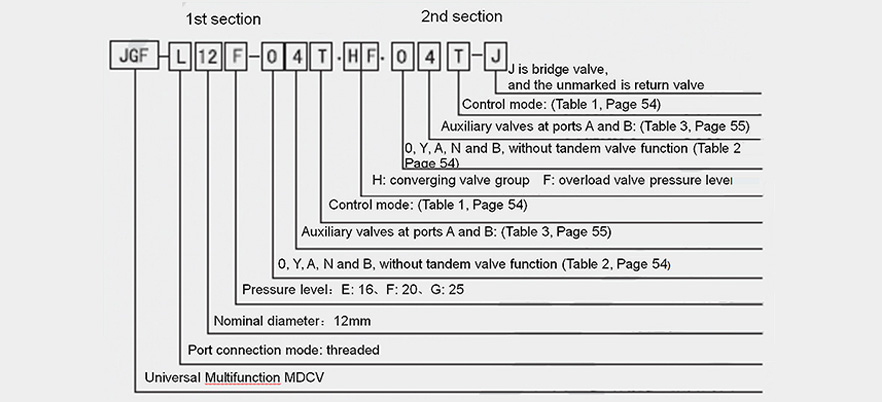

Model description

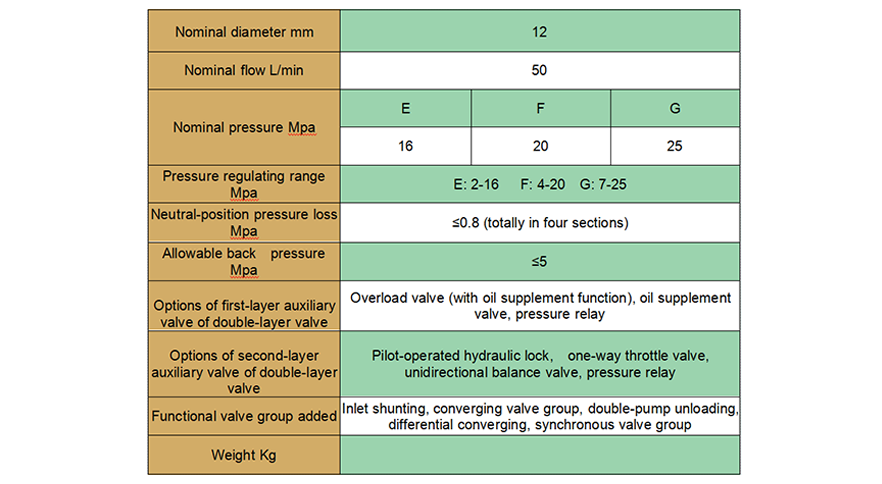

Performance parameters

JGF-L12F-O4T.O12T.O9T.O10T

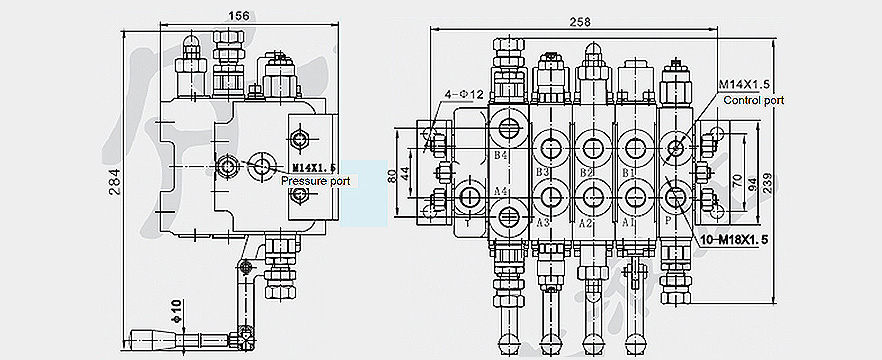

Application example:JJGF-L12F-O4T.O12T.O9T.O10T MDCV

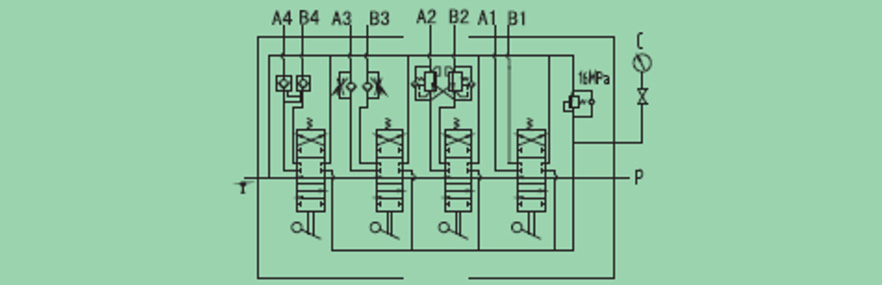

Hydraulic schematic
