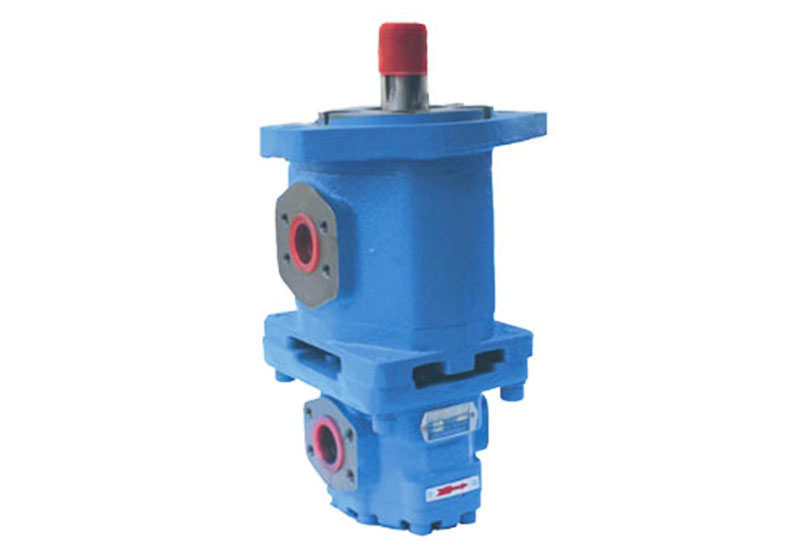

502002 CBYK3/YK2 HP Gear Pump

Purose and characteristics

The CBYK3/YK2 Duplex HP Gear Pump is provided with high-strength nodular cast iron shell, special bearing with high bearing capacity and floating compensation structure of special design. It features high pressure, wide range of revolving speed, simple structure, reliable performance and long service life. It is widely applied to the hydraulic systems of engineering machinery, mining machinery, hoisting and transport machinery, etc.

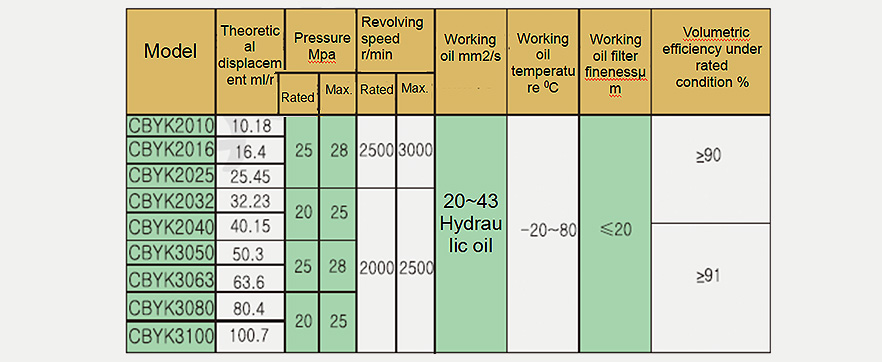

Performance Parameters

Note: Max.oil pollution degree: as per 20/17 of GB/T14039

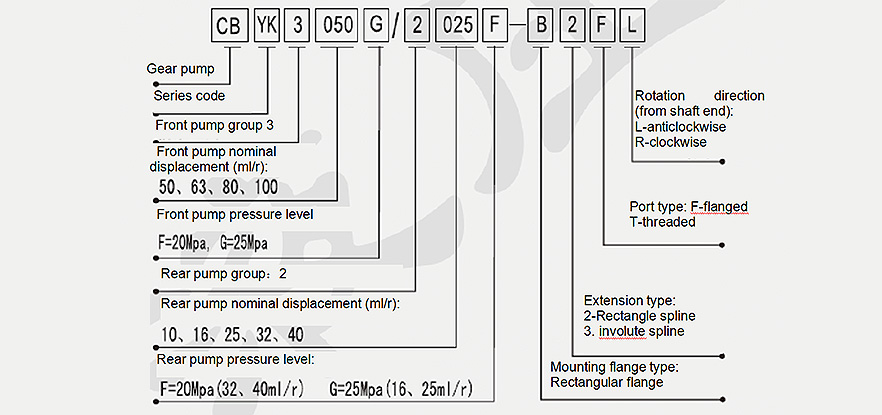

Model description

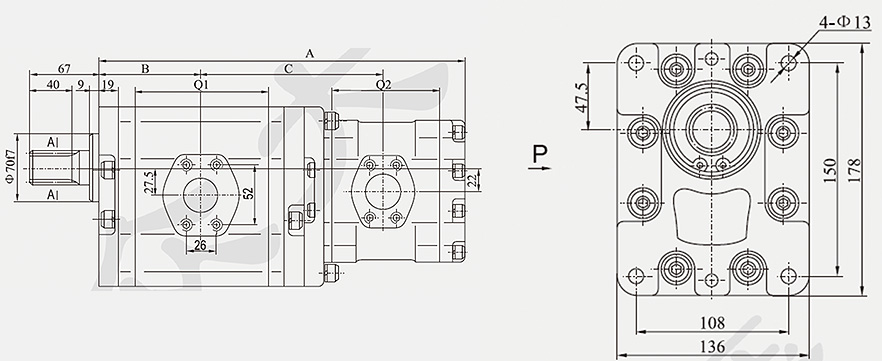

CBYK3/YK2 overall, installation and connection dimensions

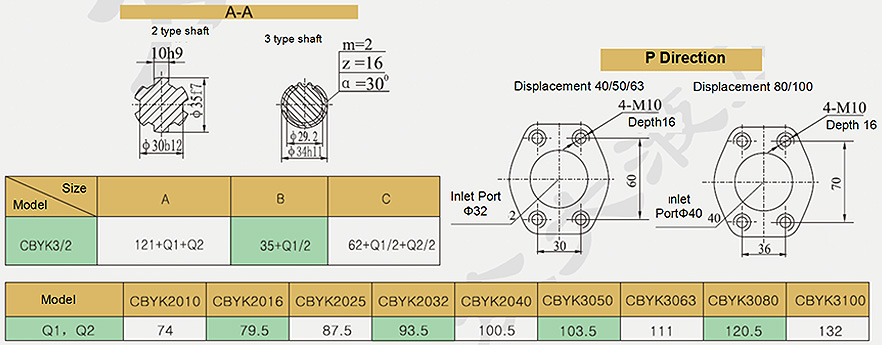

P Direction

Note:(1) The shaft extension of CBYK3/2 is the same as thoes of the types 2 and 3 of CBYK3; the port dimension is the same as thoes of CBYK3 and CBYK2 single pumps.

(2) Other installation and connection dimensions of the tandem pump are the same as thoes of single pump.
