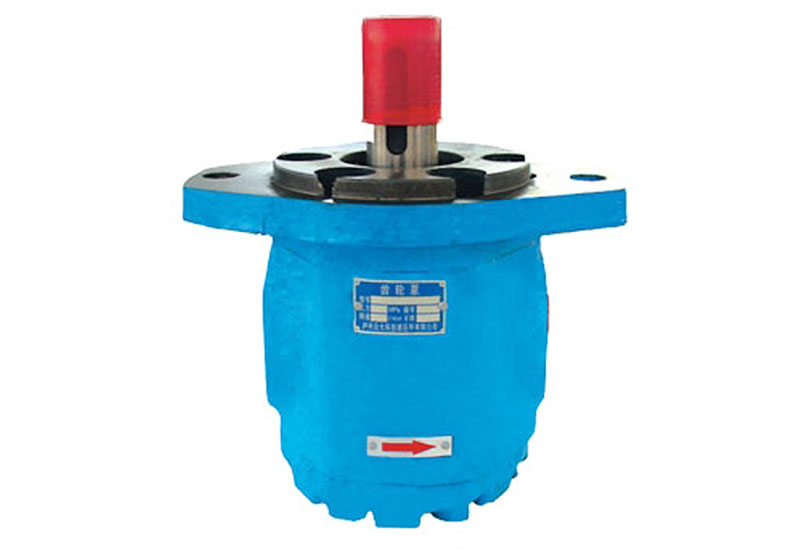

502002 CBYK3 HP Gear Pump

Purpose and characteristics

The CBYK3 HP Gear Pump is a patented product invented by our company. It is of a floating compensation structure with high-strength ductile cast iron shell, special bear with high bearing capacity and special design. It has the features of high pressure, wide range of revolving speed, simple structure, reliable performance, long service life and capability of forming a multiplex pump. It is widely applied in the hydraulic system of engineering machinery, mining machinery and hoisting and transport machinery.

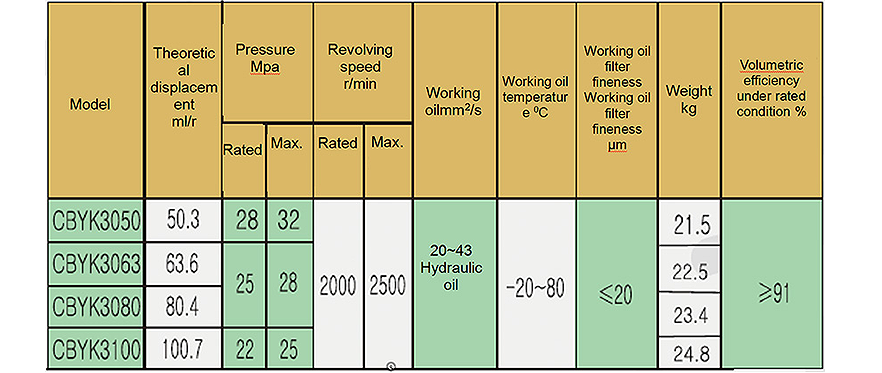

Performance parameters

           Note: Max.oil pollution degree: as per 20/17 of GB/T14039

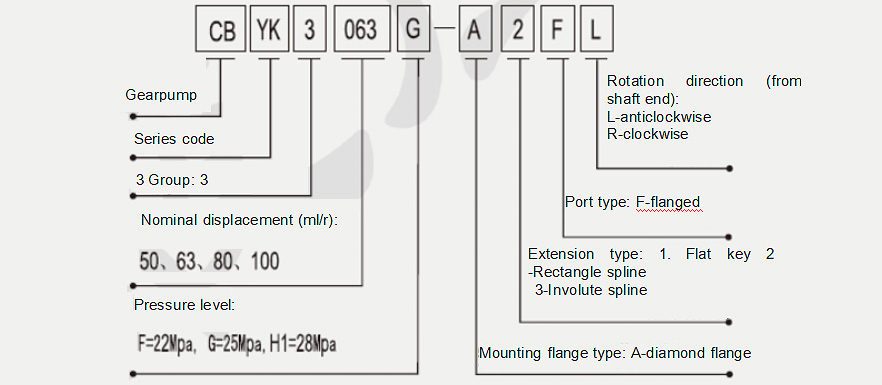

Model description

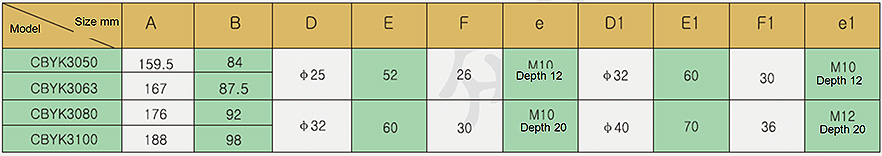

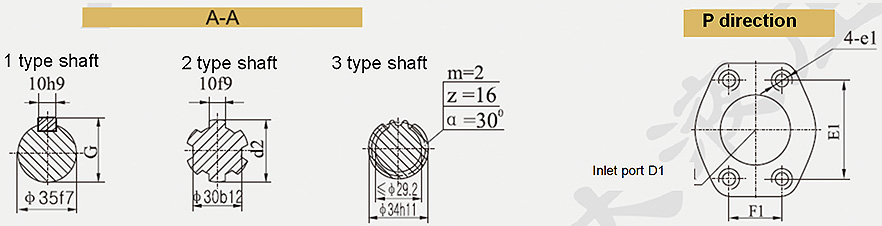

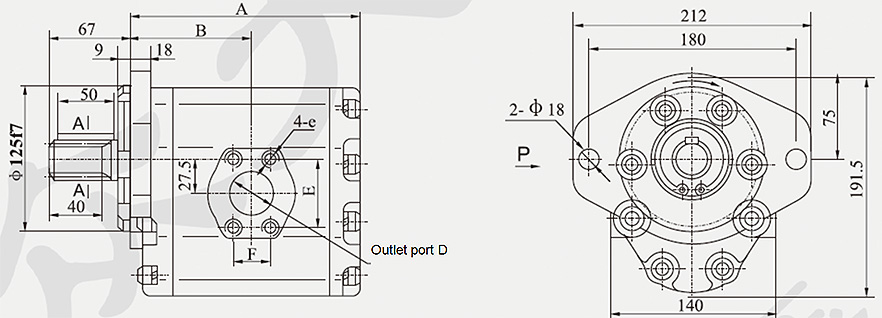

CBYK3 overall, insrallation and connection dimensions
