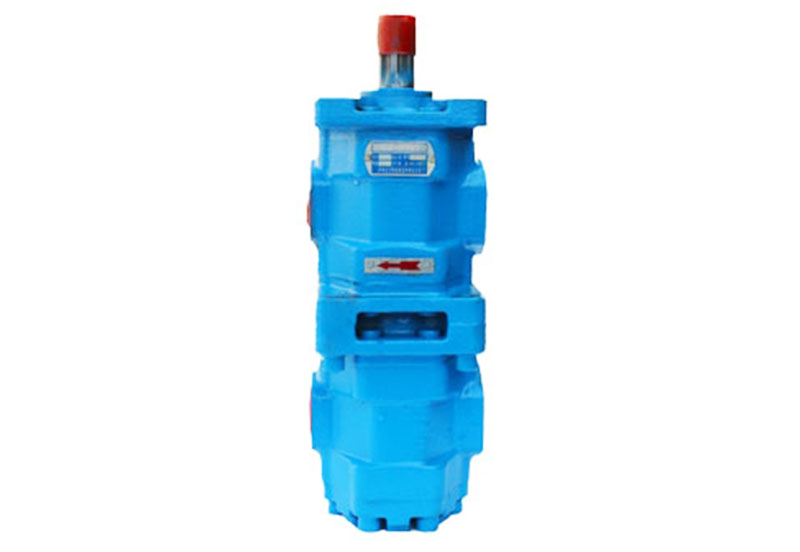

502004 CBYK2/YK2 Duplex HP Gear Pump

Purpose and characteristics

The CBYK2/YK2 Duplex Gear Pump is provided with high-strength nodular cast iron shell, special bearing with high bearing capacity and bidirectional compensation structure of special design. It features high pressure, wide range of revolving speed, simple structure, reliable performance and long service life. It is widely applied to engineering machinery, drilling and exploring machinery and various kinds of hydraulic machinery.

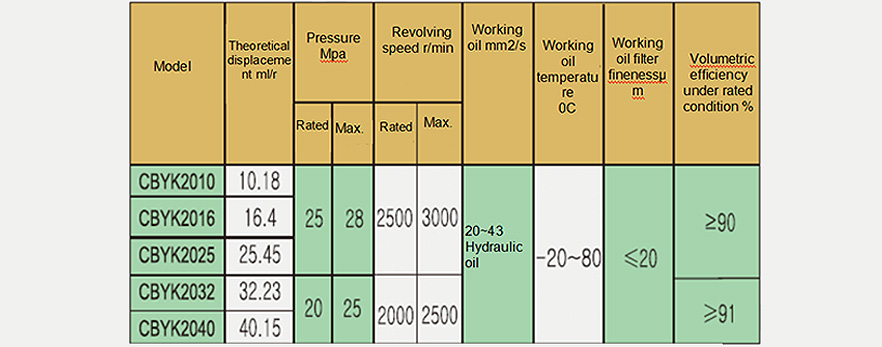

Note: Max.oil pollution degree: as per 20/17 of GB/T14039

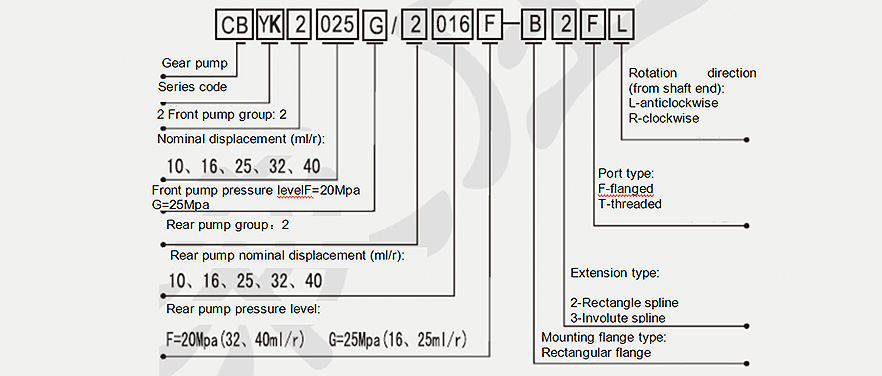

Model description

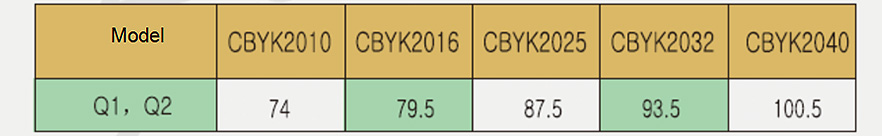

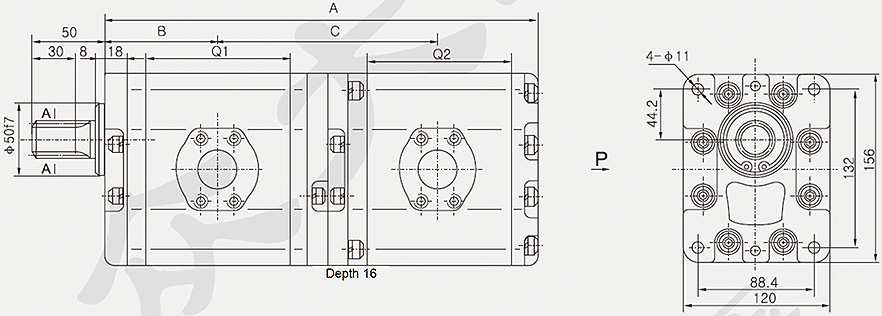

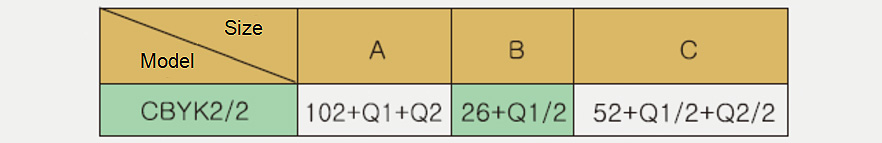

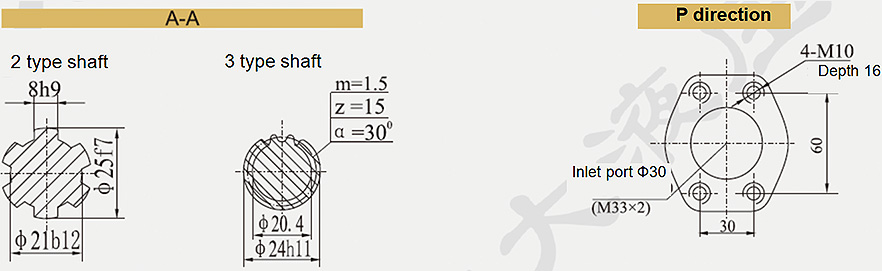

CBYK2/YK2 overall, installation and connection dimensions

Note: Other installation and connection dimensions of the tandem pump are the same as thoes of single pump.
