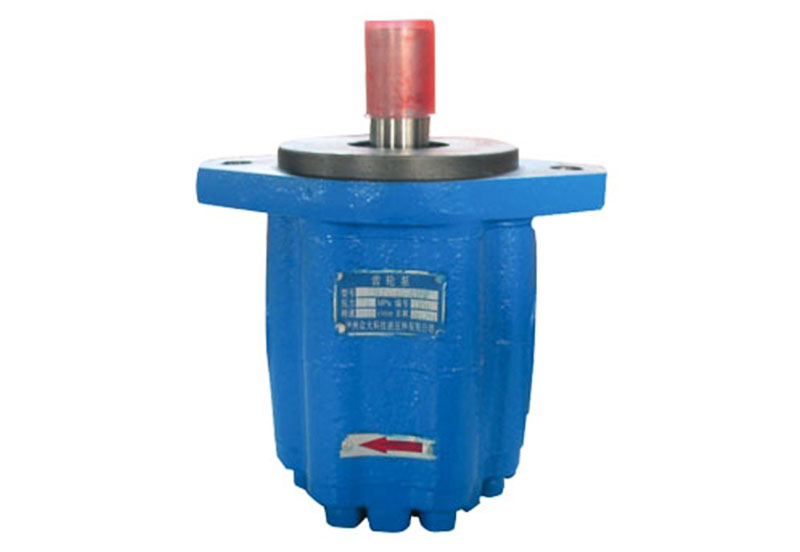

502005 CBQK5 HP Gear Pump

Purpose and characteristics

The CBQK5 HP Gear Pump Series is a patented product invented by our company. Due to high strength ductile cast iron shell and innovative hydraulic balance compensation technology, it features simple structure, high bearing pressure, reliable performance and long service life. As an upgrade product of the GBQ5 Series, its installation and connection dimensions are the same as those of the GBQ5 Series. It is extensively used in medium and small engineering machinery, mining machinery, sanitation machinery, hoisting and transport machinery and engineering vehicles.

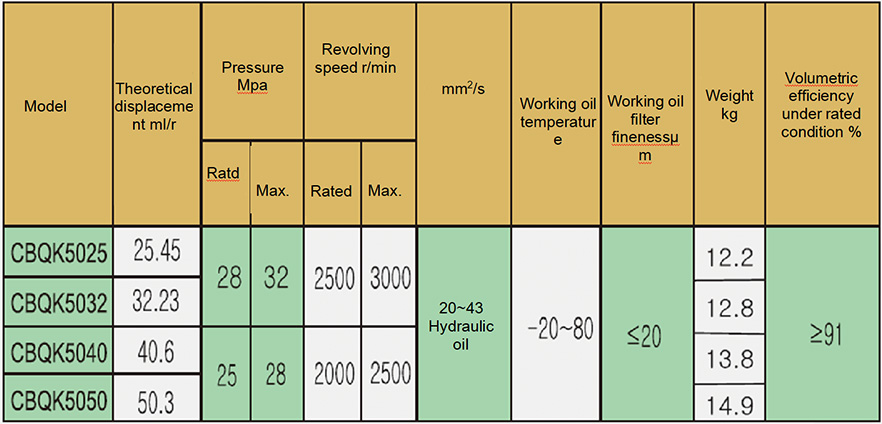

Perofrmance parameters

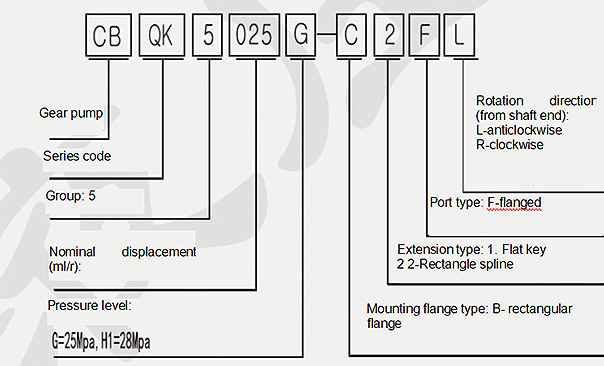

Ml descriptionode

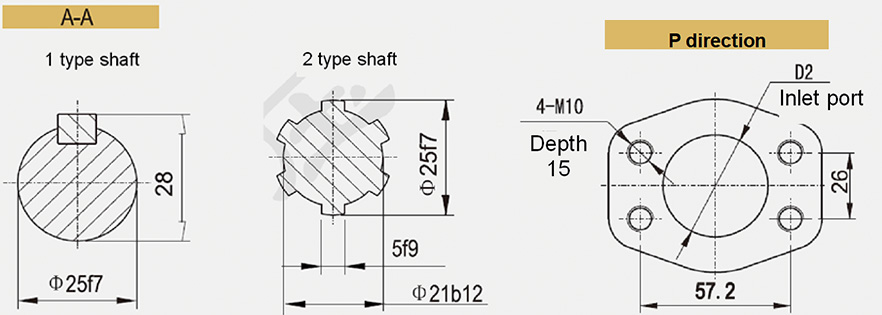

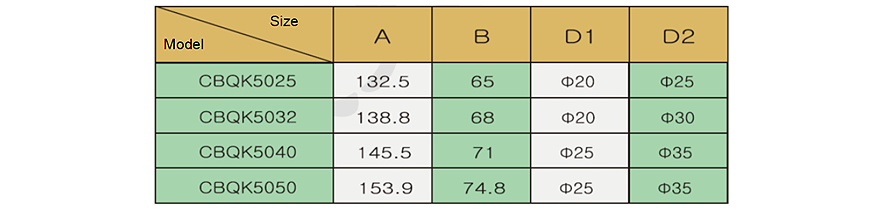

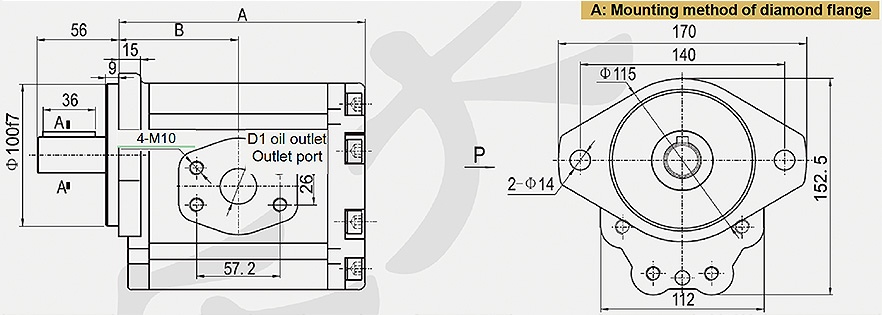

CBQK5 overall, installation and connection dimensions
