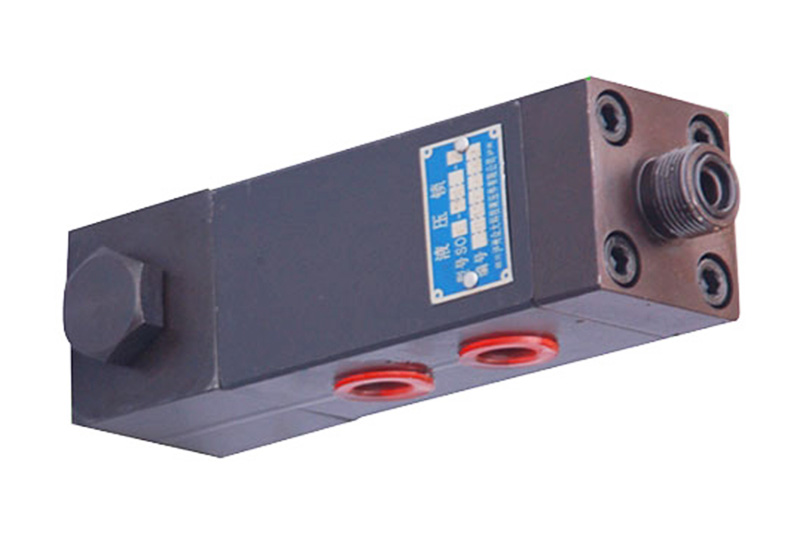

505001 S01 Bidirectional Hydraulic Lock

Purpose and characteristics

The S01 Bidirectional Hydraulic Lock Series is directly mounted on the hydraulic cylinder, which may maintain the position of piston rod of hydraulic cylinder for a long time. This hydraulic lock is mainly used in the hydraulic systems of hoisting machinery, mine machinery and other machinery.

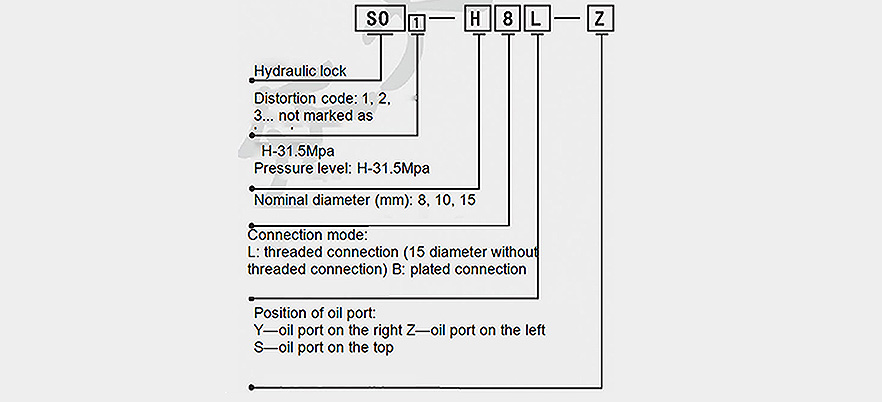

Model description

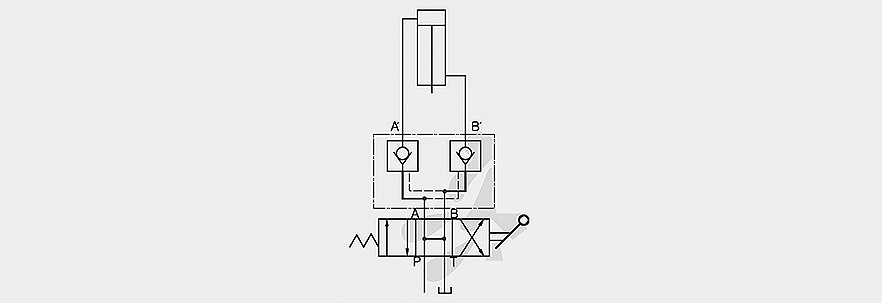

Working principle

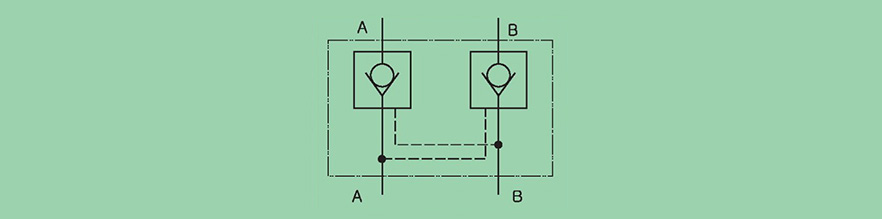

Graphic symbol

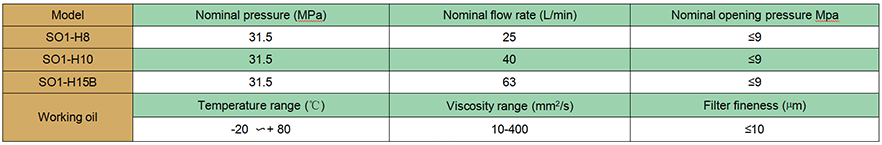

Technical parameters

 Note: Maximum contamination level of oil: as per 19/16 of GB/T14039.

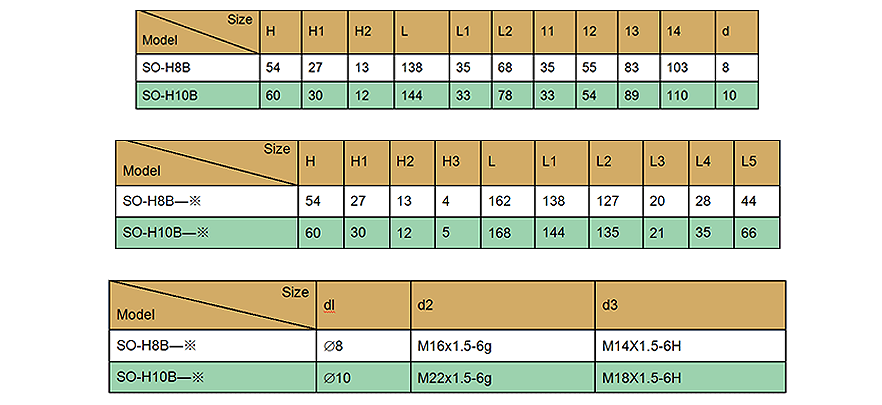

Overall & connection dimensions

Note: 2-d3 oil port position direction is top, as shown, one side of the scutcheon is left, and the symmetric side is right.

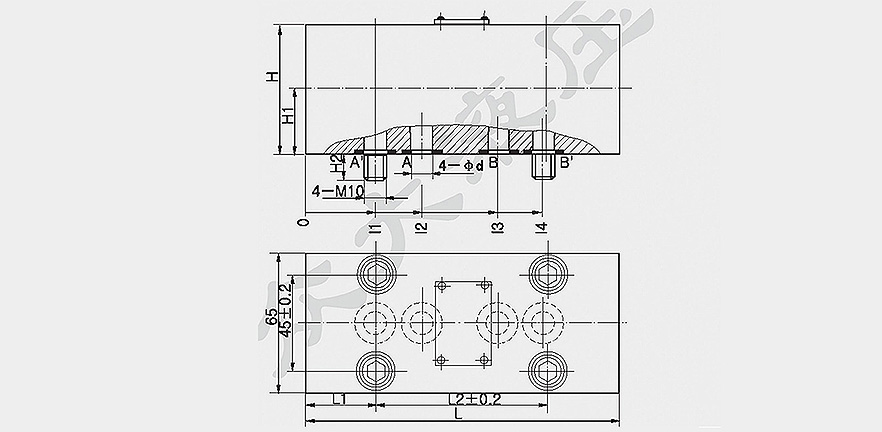

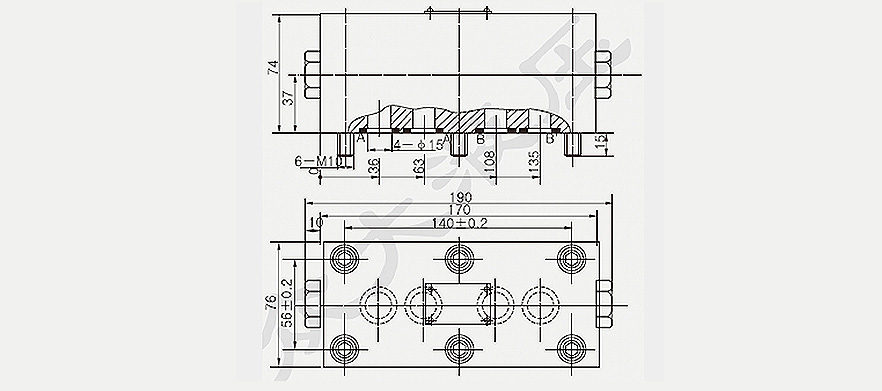

S01-**B overall, installation and connection dimensions

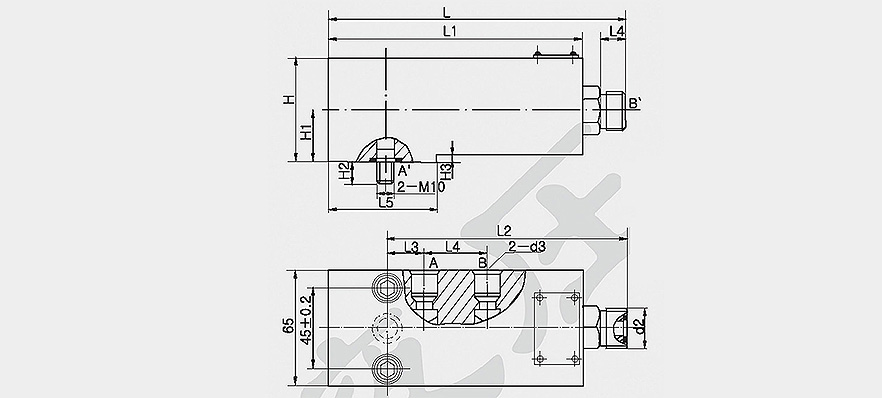

S0-**B-* overall, installation and connection dimensions

Note: 2-d3 oil port position direction is right, as shown, the symmetric side is left, and the side of the scutcheon is right

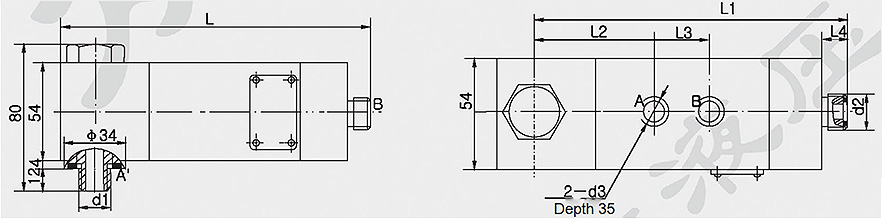

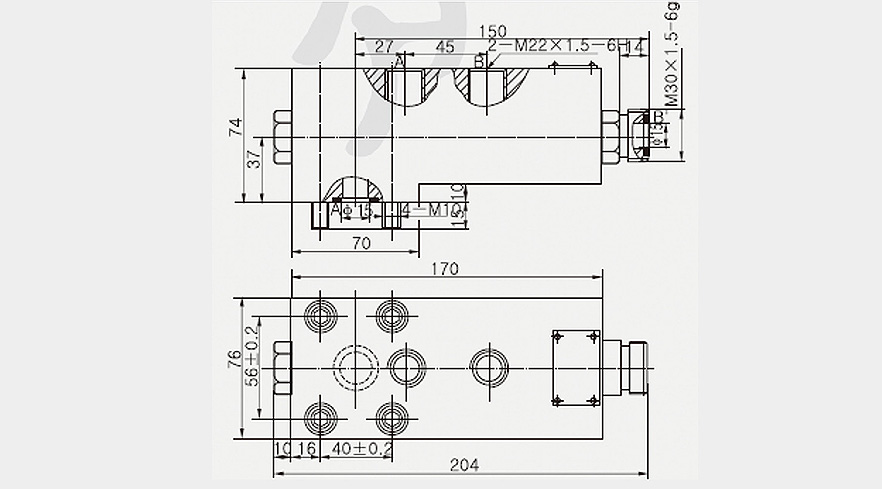

SO-H15B overall, installation and connection dimensions

S01-H15B overall, installation and connection dimensions
