505001 SO-8(10)H Bidirectional Hydraulic Lock
Home Page >> Products >> Hydraulic lock

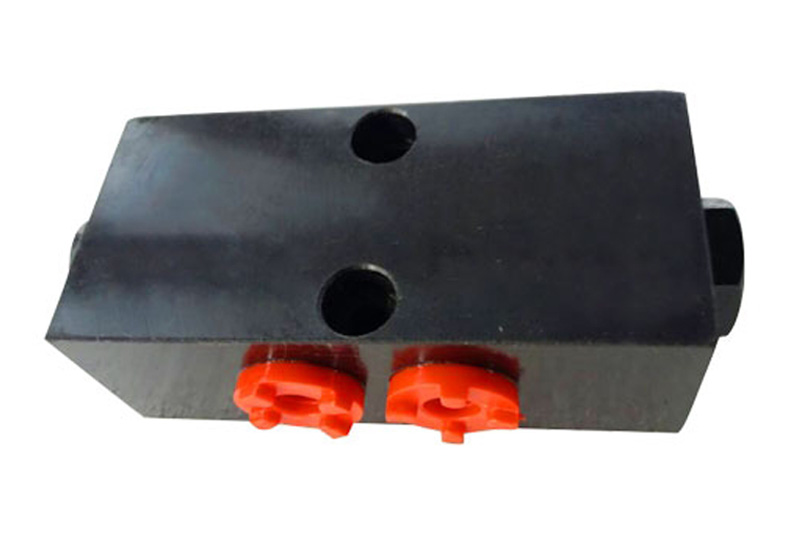

505001 SO-8(10)H Bidirectional Hydraulic Lock

505001 SO-8(10)H Bidirectional Hydraulic Lock
Inquiry

Purpose and characteristics

The SO-*8(10)H Hydraulic Lock is a control device used for keeping the original working condition or preventing automatic sliding of load after the hydraulic cylinder stops motion. This valve features compact structure, safety and reliability and convenient installation.

It is applicable to the place with small flow rate, high pressure and compact space. There are plate and line-mounted types available.

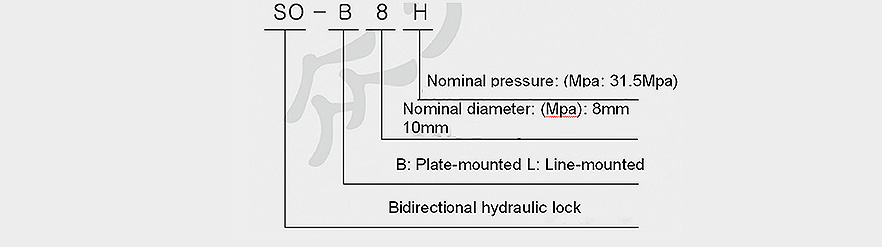

Model description

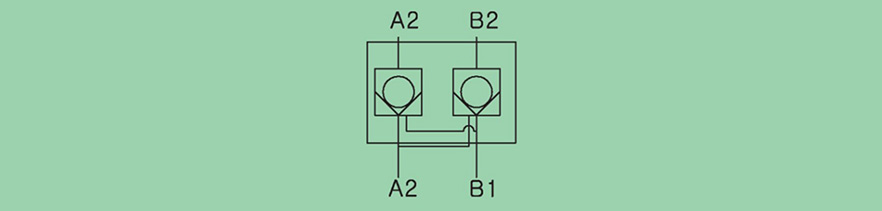

Hydraulic schematic

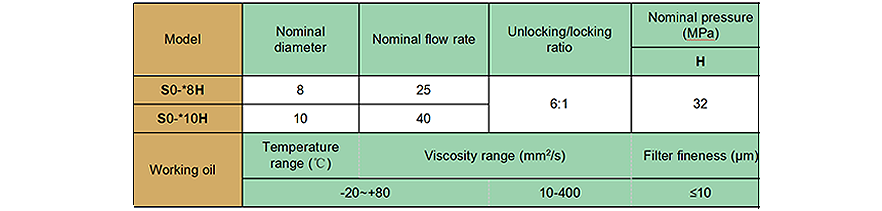

Performance parameters

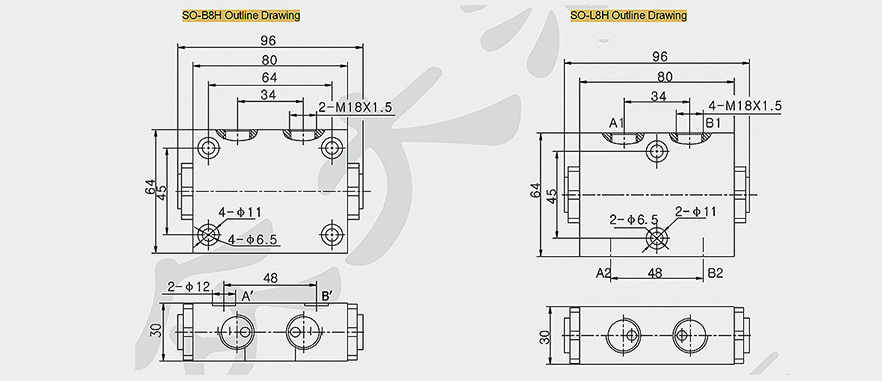

SO-B8H Outline Drawing
