Purpose and characteristics

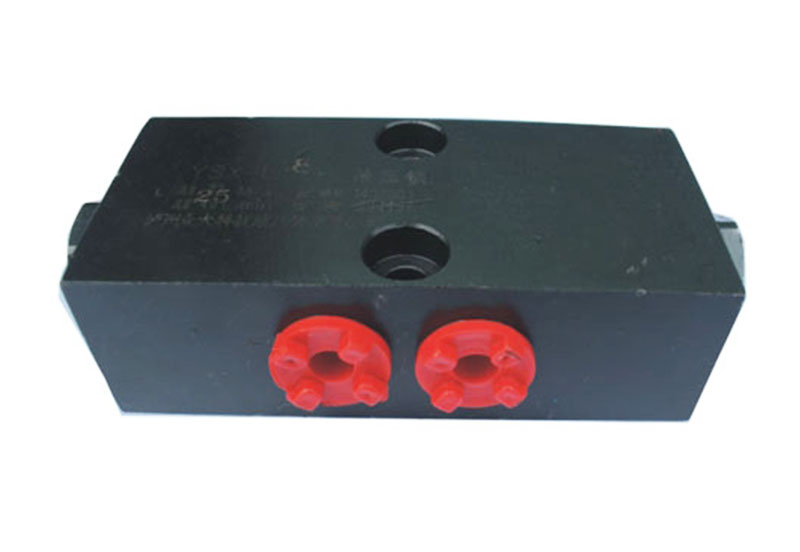

The YSX Pilot-Operated Bidirectional Hydraulic Lock Series is functionally different from directly-operated hydraulic locks, but it features lower unlocking pressure and small reversing impact, so it is applicable to the working condition having high load running steadiness requirement.

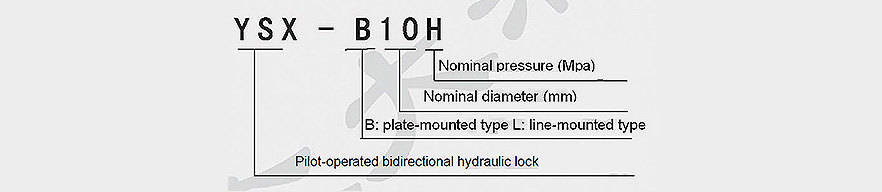

Model description

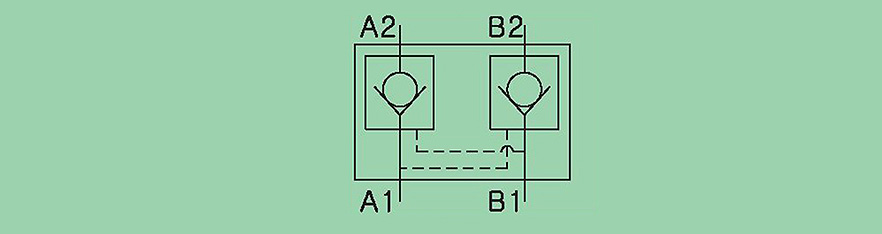

Graphic symbol
Plated connection

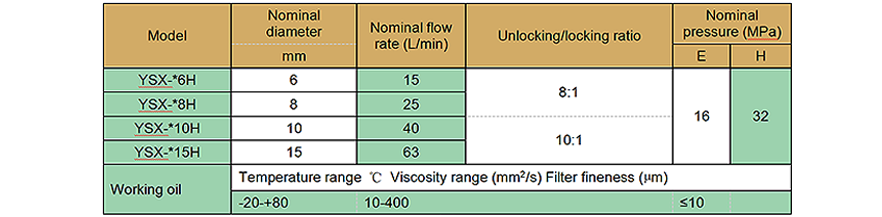

Performance parameters

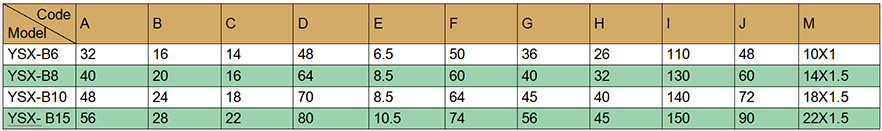

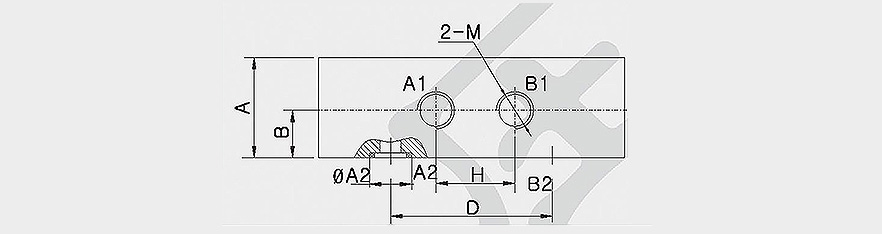

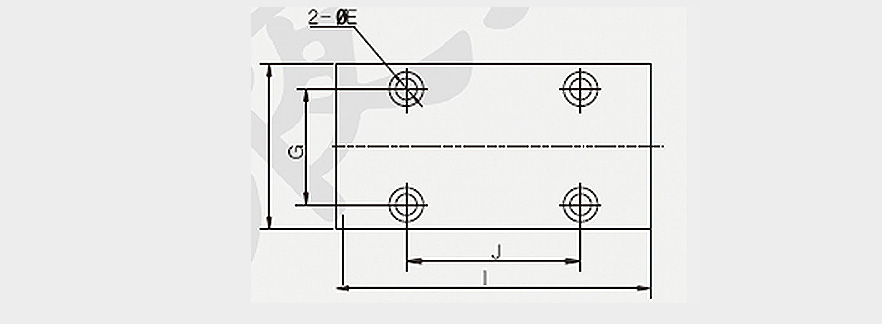

Plated connection overall /installation and connection dimensions

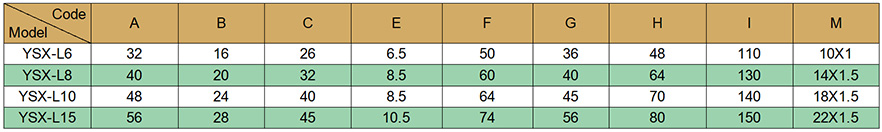

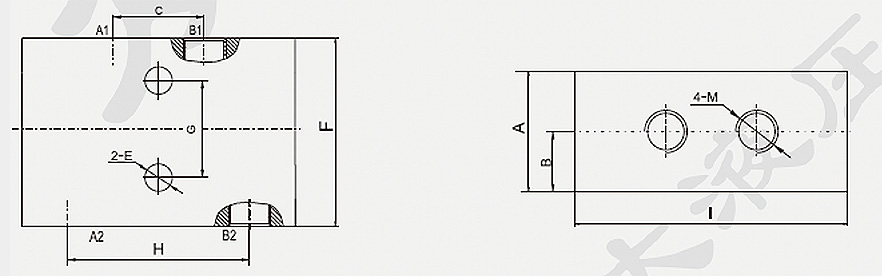

Line connection overall & installation connection dimensions
