Purpose and characteristics

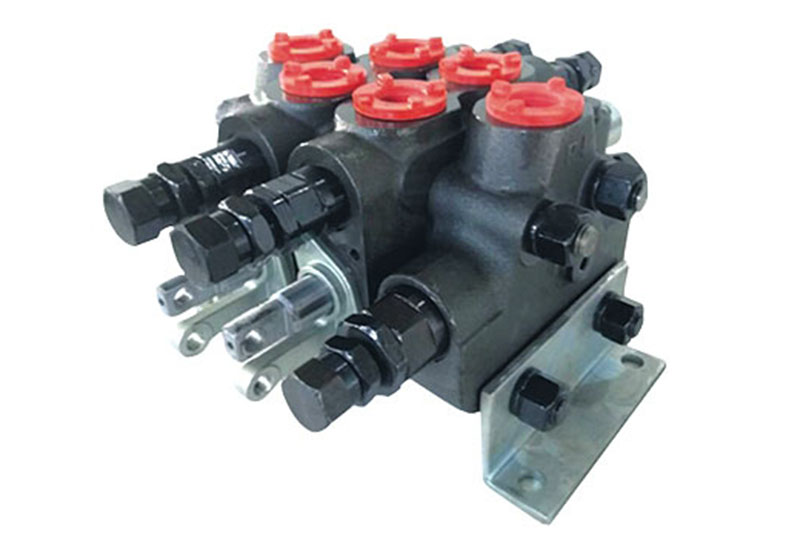

The JGF-L18 Universal Multifunction MDCV, a patented product newly developed by our company in 2016, has highly integrated functions of meeting multiple functional requirements and plugging in multiple auxiliary valves, and is widely applied to various kinds of hydraulic machinery.

Performance characteristics

1. To select a single-layer jack reversing valve, auxiliary valves such as overload valve (with oil supplement function) and pressure relay may be optionally plugged at the ports A and B.

2.To select double-layer jack reversing valve, overload valve (with oil supplement function) and pressure relay may be plugged in the first layer of ports A and B; auxiliary valves such as pilot-operated hydraulic lock, one-way throttle valve, unidirectional balance valve group and pressure relay are plugged in the second layer.

3.To select functional combination of valve groups, common valve group and double-layer valve group should be classified and combined as far as possible so as to realize convenient connection of ports of single-layer valve group.

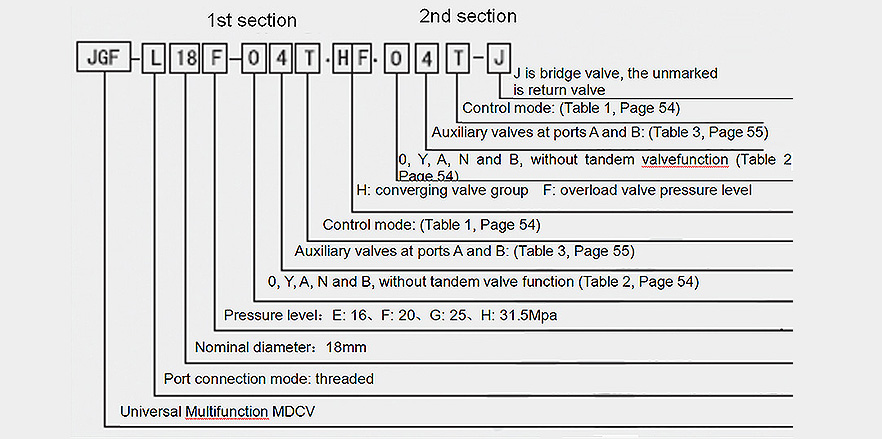

Model description
