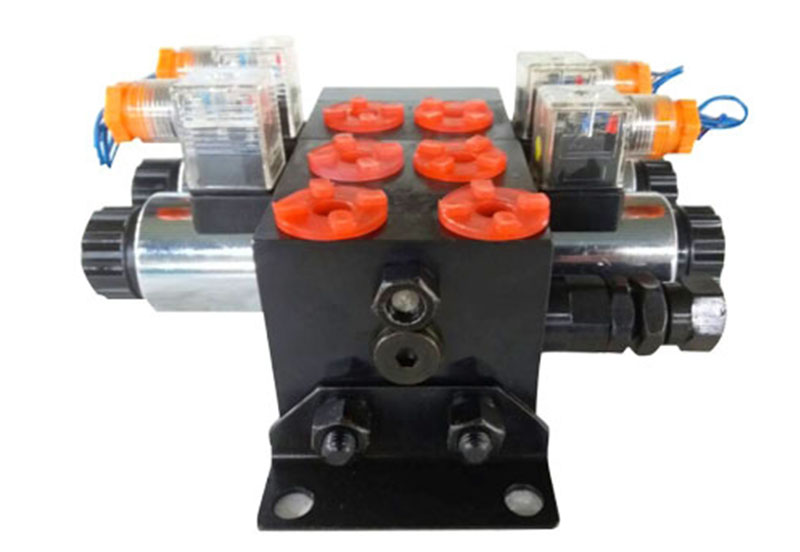

503049 JD-L10 503050 JD-L08 Electromagnetic MDCV

Purpose and characteristics

The JD Electromagnetic MDCV series integrates the functions of electromagnetic valve and MDCV and features compact structure and convenient installation. Any combination of 1-8 connection may be allowed, and slide valve functions 0, Y, A and N are available for choice. It is applicable to small environmental sanitation vehicle and various kinds of small hydraulic machinery.

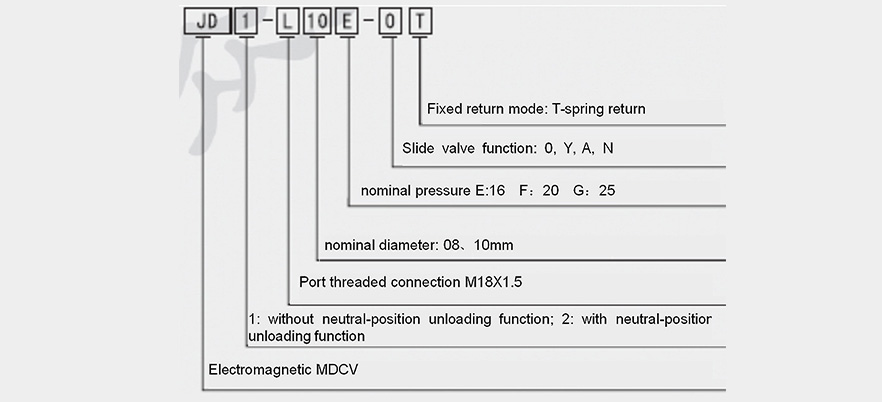

 Model description

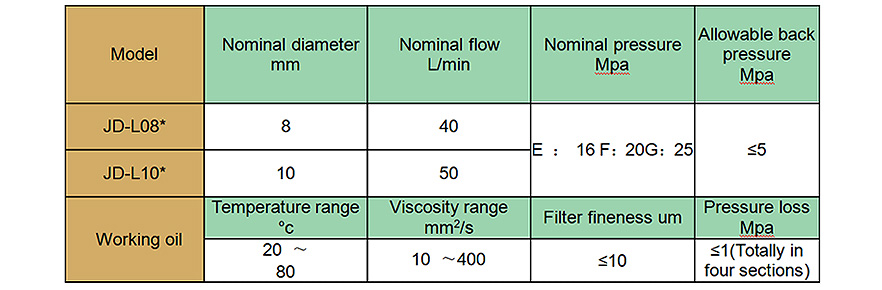

Performance parameters

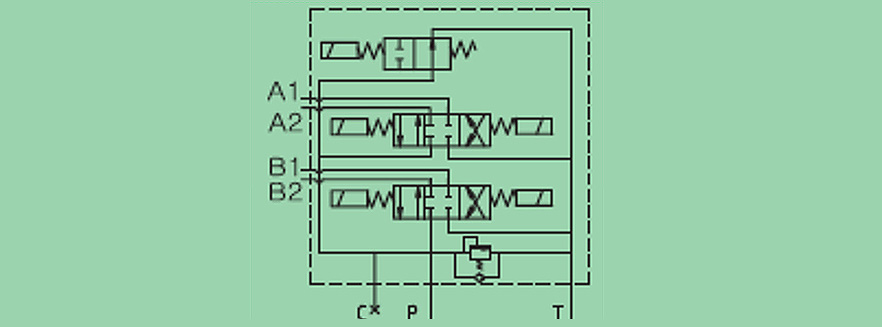

JD-L08(10)G-2(OT) Schematic

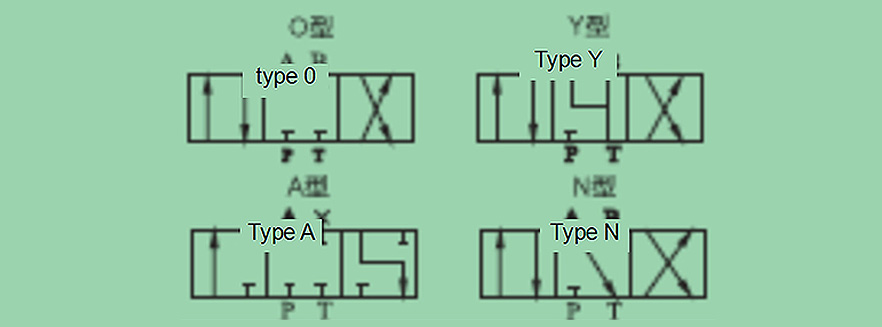

Function Symbol

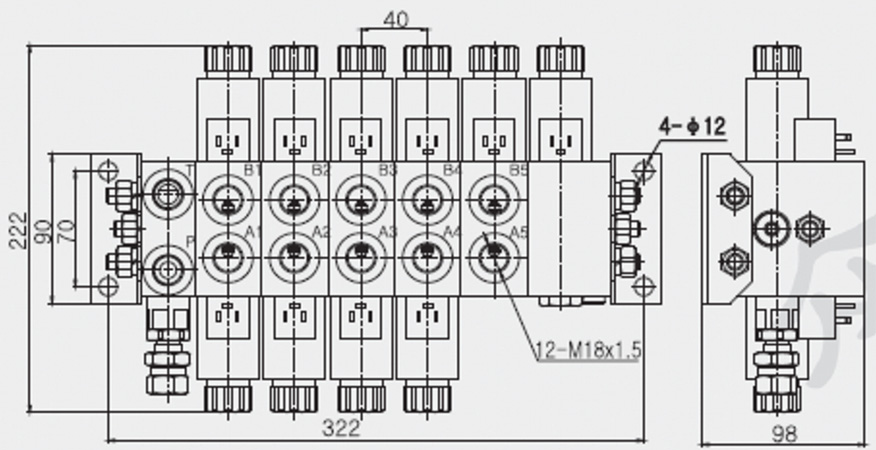

JD-L08E-2YT.Y10aT.Y10bT.Y10bT(1/2) Electromagnetic MDCV

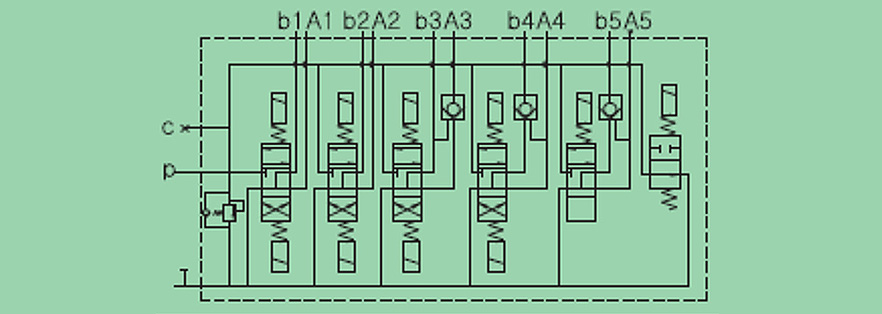

Hydraulic schematic
